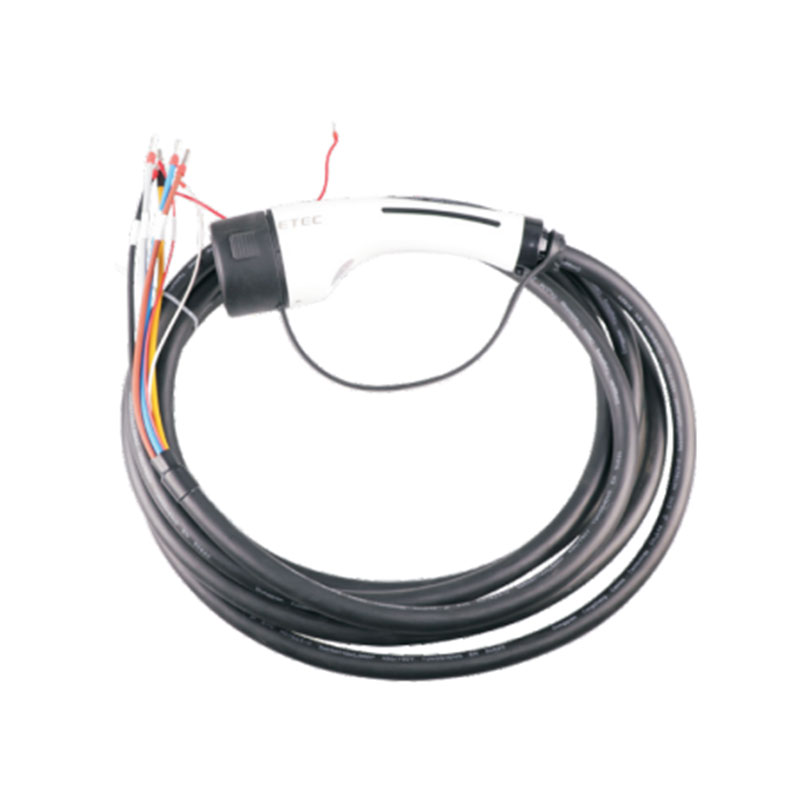

Type2 – Open end 3f
Price range: 70.00 € through 110.00 € su PVM
Technical Data
Electrical Performance
| Operation Voltage | 230V±10% 50Hz/400V±10%50Hz |
| Operation Current | 16A、32A |
| Continuously Using Time | Continuously working 24h |
| Conductive Terminal Temperature Rise | ≤ 50K |
| Insulation Resistance | ≥500MΩ、DC500V |
| Withstand Voltage | 2500V/min |
| Contact Resistance | ≤0.3Ω |
Mechanical Features
| Mechainical Life | 5,0000 times or more |
| Insertion / Pulling Force During Connection | 45N~80N |
| Withstanding Impact | Tolerable to 2 ton car rolling or 1m height drop without damage |
Major Material
| Conductor Material | Copper alloy + silver plating |
| Enclosure Material | Thermoplastic flame retardant plastic, flame retardant grade UL94V-0 |
Ambient Condition
| Ambient Temperature | -40℃-+50℃ |
| Humidity | <85% |
Cable Length
| Type2 | 5m, 8m, 10m |
